Australia’s premium Off Road All-Terrain caravan suspension system

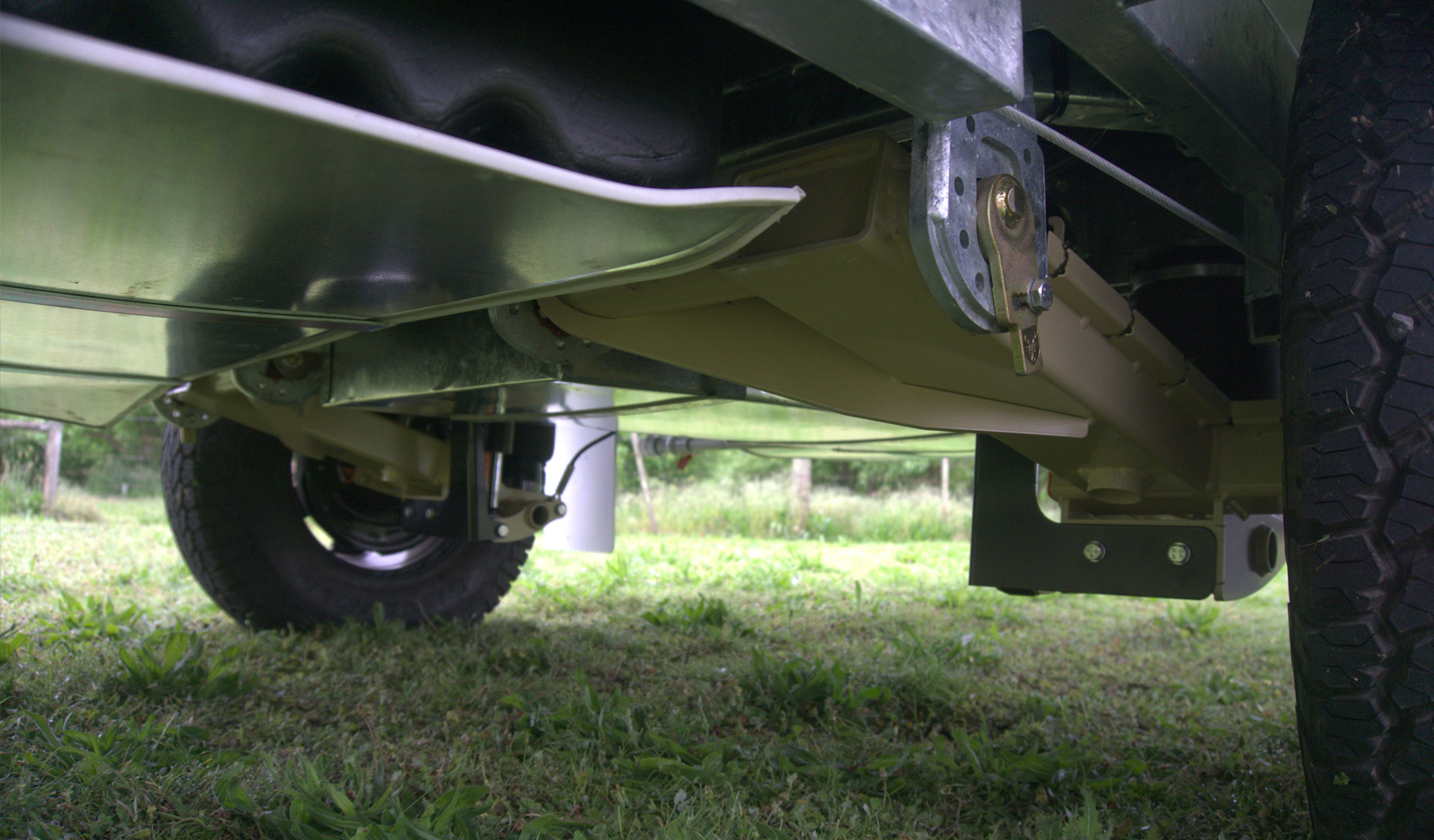

Used on our "All Terrain" caravans
The engineering department went all out on this one.
All of the best elements were picked in the development of the ATX, including off-road race-spec mono-tube dampers, larger VC bearings and a 63mm stub axle. All of this, combined with the Cruisemaster single-arm chassis, resulted in the biggest and baddest Cruisemaster suspension ever produced.

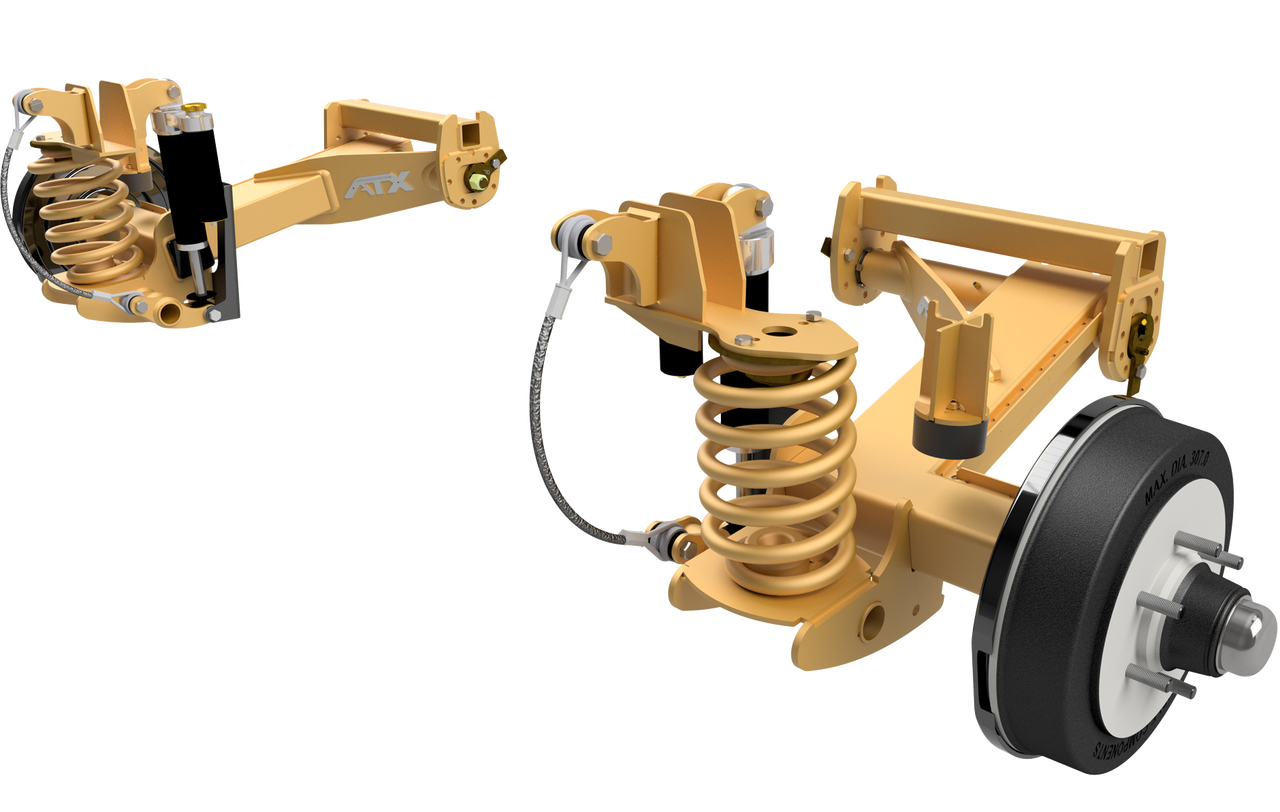

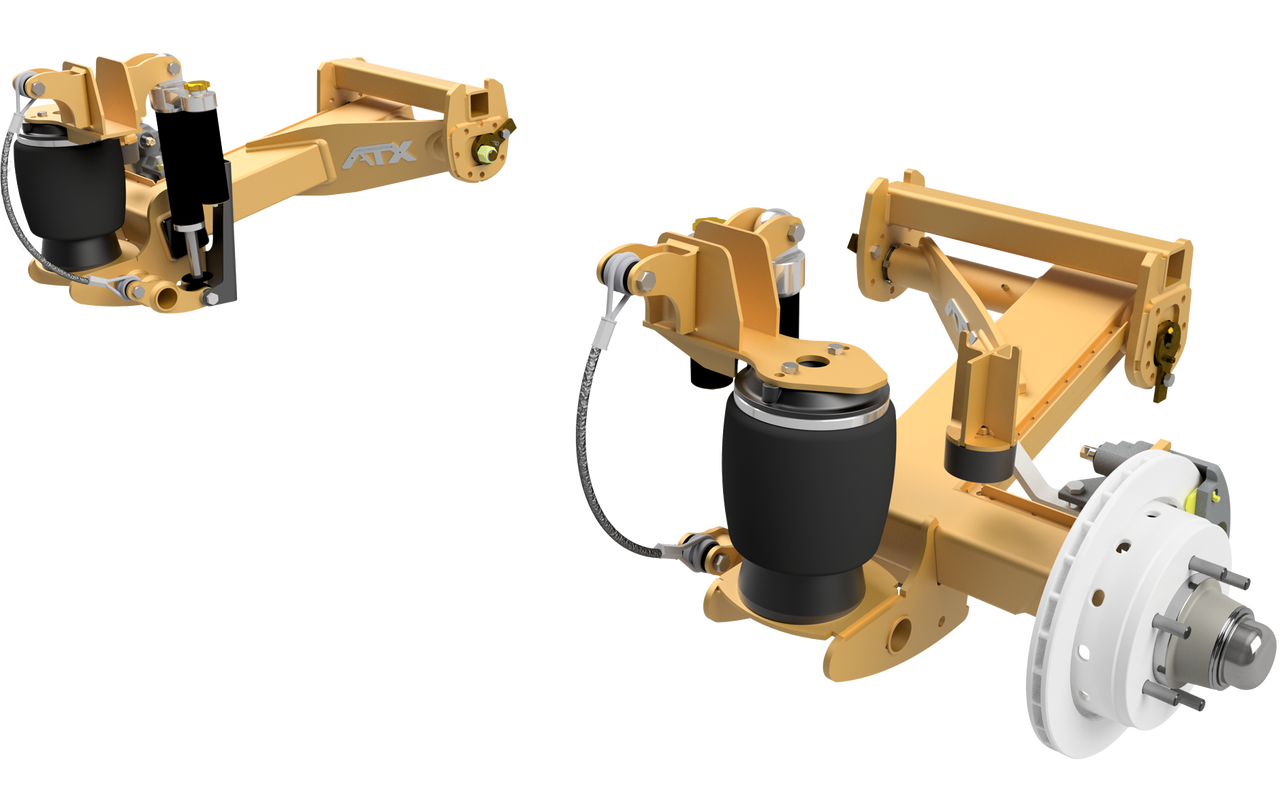

Choose from Coil or Air Spring configurations with Cruisemaster ATX suspension.
The long-travel Cruisemaster ATX suspension is available in Coil or Air spring configurations, which can be changed at any time using a simple adaptor system. The combination of a King Spring or VC designed Air Spring combined with in-house designed mono-tube dampers allows the intrepid explorer to truly travel without limitations.
It is not only a rugged suspension, but it also has exceptional handling and riding qualities. With Cruisemaster ATX, you can be certain that your custom caravan and its suspension will not only get you there, but also back, even if “there” isn’t on the map.
Long travel (140mm) single-arm design.
215mm ride height.
Drum or ventilated disc brake options.
63mm stub axle with large VC bearings.
Standard rebound cable.
Long travel (140mm single-arm design.
Interchangeable King Spring coil or custom Firestone air spring options.
46mm piggyback monotube dampers.
Locking camber and toe adjustment.
Simple self-aligning mounting system.
Powder coated as standard.
RAT proven.
